Ice Maker Pump

Home Ice Maker Pump

12Volt Mini Brushless DC Water Pump for Ice Maker

ice maker pump
mini water pump
12 Volt Electric Pump
12Volt Mini Brushless DC Water Pump for Ice Maker
ice maker water pump

12Volt Mini Brushless DC Water Pump for Ice Maker

An ice maker pump is a device that circulate water in ice maker to facilitate freezing process. It is commonly used in portable ice makers, under-counter ice, and some refrigerator makers. The pump assists in transferring water from the reservoir to the freezing tray or mold where it is frozen into ice cubes.

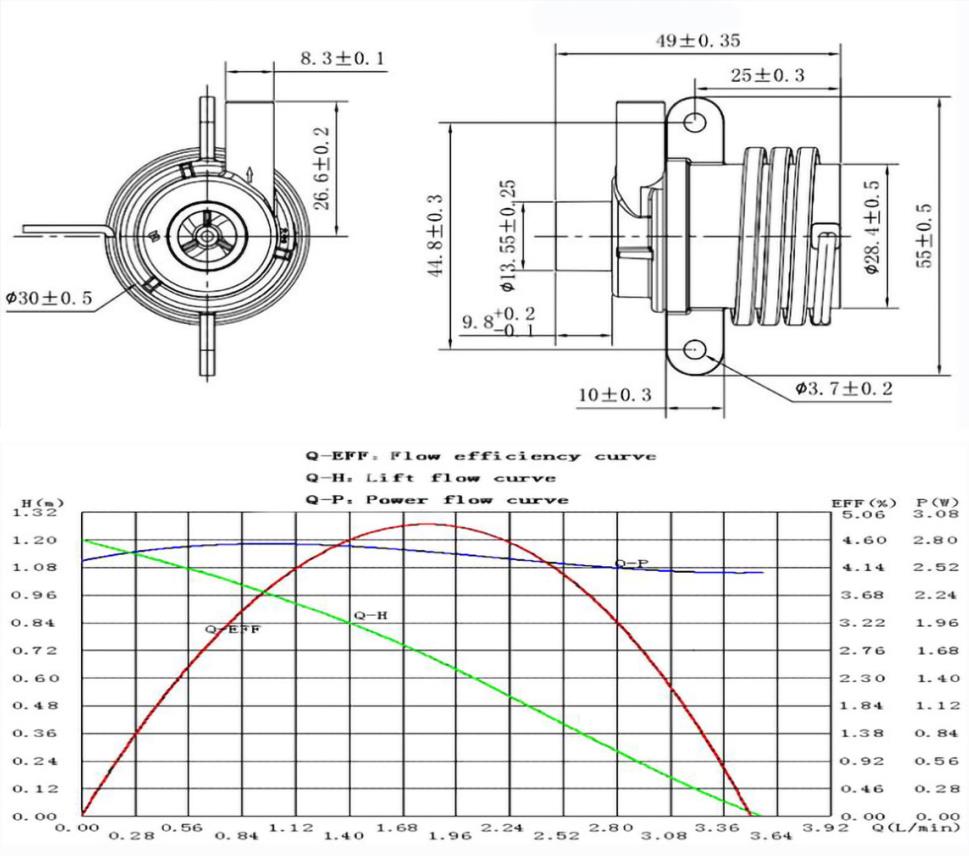

  • Max Flow :

    3.6L/min ± 0.5
  • Max Head :

    1.2M ± 0.3
  • Rated Power :

    3W (1±10%)
  • Customized :

    Acceptable

12Volt Mini Brushless DC Water Pump for Ice Maker



A pump for ice machine is typically used to circulate water or coolant through the machine to freeze and produce ice. The specific type of water pump used can vary depending on the design and size of ice machine.



When the ice maker is activated, the mini water pump is usually powered by a 12-volt DC (direct current) electrical supply. This low voltage is safe to use and allows for efficient operation without consuming too much power. The 12Volt electric pump creates the necessary pressure and flow to move the water through the system, ensuring that the ice maker produces ice cubes consistently.



One common type of electric water pump used in ice machine is a submersible pump. These pumps are designed to be placed directly in the water reservoir of the ice machine. They are typically equipped with impellers that create water flow, allowing the machine to freeze the water and produce ice.

water pump for ice machine





Thermo Pump Factory



THERMO ice maker pump  CWP025A is designed to be high efficient, quite and compact which application in ice machine. With strictly QC system that all pumps are 100% inspection before packing. The feature of our BLDC pumps are:

Small size

Long lifetime

Lower noise

Dry-running protection

Over-current protection

Over-voltage protection

Lower-voltage protection

Over-temperature protection

Constant power

Static seal design to prevent leakage







Thermo Pumps win a good reputation in the market after several years. Its with widely applications including: smart toilet, water heated mattress, water heater, electric vehicle, computer cooling, motorcycle, aquarium, ice maker, water dispenser, coffee machine, beverage machine, dishwasher and others kitchen appliances.

Thermo Pumps Applications





leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

small electric water pump
12V Small Electric Water Pump for Ice Maker

The electric water pump plays a key role in the ice maker. The ice maker pump is mainly responsible for pumping water from the water tank or water source and providing it to the ice machine's cooling system.

pump for ice maker
12V Small Centrifugal Ice Machine Water Pumps

An ice maker pump is a component typically used in ice-making machines. It is responsible for pumping water to the ice maker unit, where it freezes and forms ice cubes. The water pump helps maintain a continuous flow of water to the ice maker and ensures proper operation.

ice maker pump
12Volt Mini Brushless DC Water Pump for Ice Maker

An ice maker pump is a device that circulate water in ice maker to facilitate freezing process. It is commonly used in portable ice makers, under-counter ice, and some refrigerator makers. The pump assists in transferring water from the reservoir to the freezing tray or mold where it is frozen into ice cubes.

small water circulation pump
12V Small BLDC Submersible Water Circulation Pump Supplier

An ice maker pump is a device that is used in some ice maker machines to circulate water and facilitate the production of ice. It is typically used in commercial ice machines or high-capacity residential ice makers.

ice maker drain pump
12v Buit-in Drain Sump Pump For Ice Maker

An ice maker drain pump is a device used in some ice makers to remove excess water that accumulates during the ice-making process. It is typically installed in ice makers that produce a large volume of ice or in situations where a gravity drain is not available.

condensate pump
Mini Split Condensate Removal Pump

Condensate pump is a kind of pump specially used for lifting condensate, which is widely used in refrigeration, air conditioning, ice machine, HVAC,low-temperature storage and other equipment.
