Ice Maker Pump

Home Ice Maker Pump

12V Small Electric Water Pump for Ice Maker

small electric water pump
mini electric water pump
mini centrifugal pump
small dc water pump
water pump for ice maker

12V Small Electric Water Pump for Ice Maker

The electric water pump plays a key role in the ice maker. The ice maker pump is mainly responsible for pumping water from the water tank or water source and providing it to the ice machine's cooling system.

  • Max Flow :

    3.6L/min ± 0.5
  • Max Head :

    1.2M ± 0.3
  • Rated Power :

    3W(1±10)%
  • Customized :

    Acceptable

12V Small Electric Water Pump for Ice Maker



The mini centrifugal pump is an important part of the ice machine and is mainly used to circulate the refrigerant to achieve the ice making process.

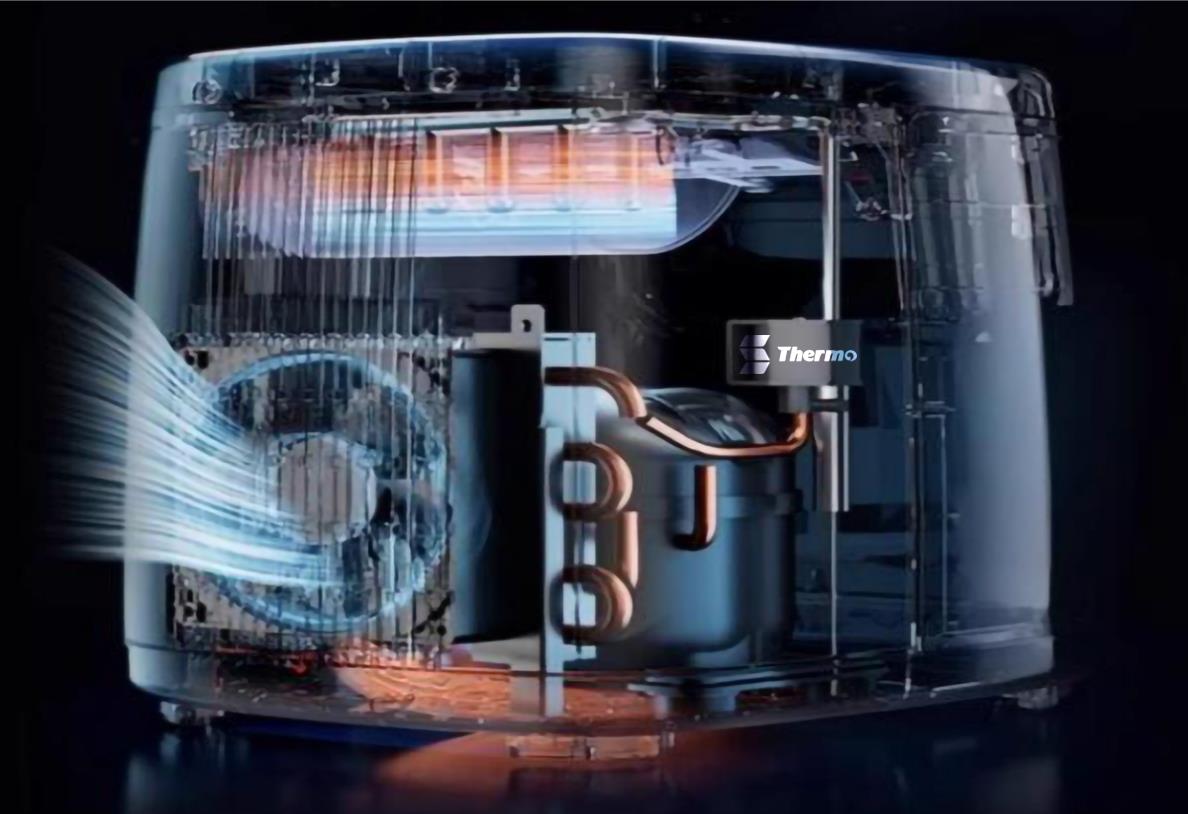

Here are the working principle about the ice make pump:

The small electric water pump drives the refrigerant to circulate between the evaporator and condenser of the ice machine, taking away heat from the inside of the ice machine and transferring the cold energy to the refrigeration area of the ice machine. As the refrigerant circulates, the water pump ensures that the refrigerant flows at the proper pressure and flow rate to maintain the cooling effect of the ice machine.



In short, the mini electric water pump plays an important role in the ice machine. Choosing a suitable water pump and performing regular maintenance are great significance to ensure the normal operation of the ice machine and improve ice making efficiency.

mini water pump for ice maker

ice maker



Thermo (Xiamen) Intelligent Technology Co., Ltd. is a high-tech enterprise integrating R&D, production and sales, specialized in providing electric water pumps, oil pumps, PTC heaters, electric water valves and other products. Since its established, We was accumulated professional technology expertise and strong R & D capacity , is a brushless DC water pump program solution experts.

Thermo Pump Company Profile





WHP025A (RoHS)
Ambient Temperature -25~50℃
Ambient Humidity Submersible
Medium Water
Medium Temperature 0~60℃
Waterproof Level IP68
Max/Continue Pressure 0.5MPa/0.15MPa
SPECIFICATION FEATURE
Rated Voltage 12V DC Color Black
Rated Current 0.25A(1±10)% Weight 49g ± 10
Rated Power 3W(1±10)% Noise ≤40dB@1m
Max Flow 3.6L/min ± 0.5 Lifetime ≥10,000H
Max Head 1.2M ± 0.3 Insulation F (155℃)



THERMO mini electric water pump for ice maker WHP025A with feature as below:

l Small size

l Long lifetime

l Lower noise

l Dry-running protection

l Over-current protection

l Over-voltage protection

l Lower-voltage protection

l Over-temperature protection

l Constant power

l Static seal design to prevent leakage

THERMO small water pump applications:

Ice maker

Hot water dispenser  / Instant boiling

Coffee maker

Water purifier

Vending machine

Beverage dispenser

Milk dispenser

Humidifier

Air purifying / Air-conditioning fan
